Connection reference and compatibility

Browse the reference — 25 entries

M20x1

Nominal thread diameter 20 mm; pitch 1 mm. Right-hand; 1 start.

M21x0.5

Uncommon thread found on some specialty microscope objectives and photomicroscopy equipment.

Microscopy

M22x0.5

Some small lenses mount thread. Also, a filter thread on some lenses.

Equipment and systems: Zeiss S-Planar 4/32mm lens (mount thread)
Schneider-Kreuznach Xenar/Xenon D-Mount lenses (filter thread)

Compatibility and limitations: The same lens name doesn't guarantee compatibility, since old parts weren't strictly standardized. Always measure your particular lenses directly.

Photography · Video & Cinema

M22x0.75

Some flat pinhole lenses use such a thread.

Photography

M22.5x0.5

Filter thread for small lenses. Also, lens cells of #00 shutters use this thread.

Equipment and systems: Compur #00 lens cells
Synchro Compur #00 lens cells
Industar-69 lens (filter thread)
Minitar-1 32mm f/2.8 Art lens (filter thread)

Photography · Filters & holders

M23.5x0.5

Used on small Meopta enlarger lenses (e.g. Anaret 50mm/80mm from Opemus enlargers) and some Eastern European microscope accessories.

Microscopy · Enlarging

M24x0.5

Small filter and accessory thread found on some compact optics, cine lenses, and microscopy equipment.

Microscopy · Filters & holders

M24x0.75

Thread on some microscope objectives and condensers; also used in certain industrial optical mounts.

Microscopy

M24.5x0.5

Uncommon thread encountered on some vintage microscope objectives.

Microscopy

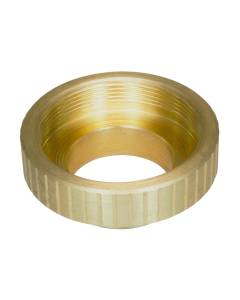

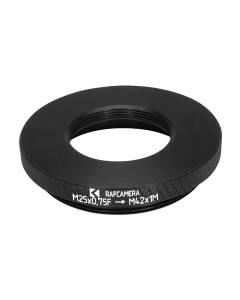

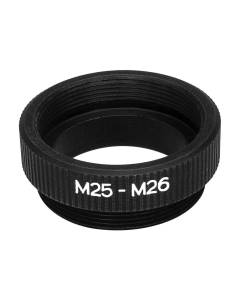

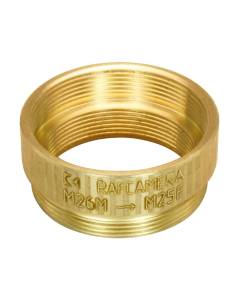

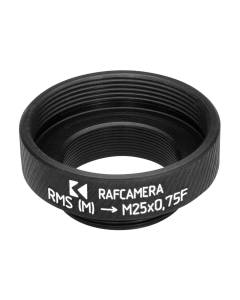

M25x0.75

Standard thread for Nikon (CFI60 system) and Leica infinity-corrected microscope objectives. Both brands adopted this size when they moved away from the universal RMS standard.

Compatibility and limitations: Also used in some Thorlabs optical systems.

Microscopy

M25x1

Durst enlarger Lapla lensboard thread (25mm mount); also found on some older microscope eyepiece tubes.

Microscopy

M26x0.5

Some GOI prototype lenses.

Photography

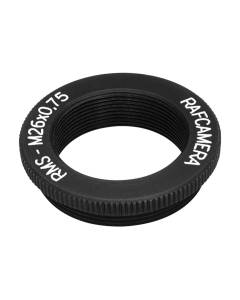

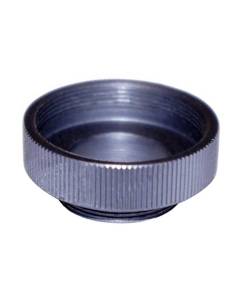

M26x0.75 & M26x36tpi (W26)

Nikon BD objectives use M26x0.75 metric thread.
Mitutoyo infinity-corrected plan-apochromat objectives (M Plan Apo, M Plan Apo HR series) use M26x36tpi mixed thread.

Compatibility and limitations: Our adapters in this category are designed to accept both Nikon M26x0.75 and Mitutoyo M26x36tpi microscope objectives, using a short, clearance-fit thread.

Microscopy

M26x1

Lens mount on some Robot cameras.

Equipment and systems: Some Robot cameras.

Compatibility and limitations: Robot cameras had many different mounts, and even 26mm thread can have different pitches. Internet sources say that older cameras have an M26x0.75 thread while newer cameras have an M26x1 thread. Please measure your mount diameter and pitch before purchasing an adapter.

Photography

M26.5x0.5

Thread on some specialty microscope and optical industry components.

Microscopy

M27x0.5

Rare thread found on some niche microscopy and industrial optical mounts.

Microscopy

M27x0.75

Standard thread for Zeiss infinity-corrected microscope objectives (Plan-Apochromat, Plan-Neofluar, etc.). The canonical Zeiss objective thread for modern research microscopes.

Microscopy

M28x0.5

Filter thread used on some compact cameras and small optics; also found on microscopy accessories.

Microscopy · Filters & holders

M28x0.6

Uncommon pitch found on some enlarger accessories and specialty optical mounts.

Microscopy · Enlarging

M28x0.75

Filter thread found on some compact cameras, bridge cameras, and small scope accessories.

Astronomy · Filters & holders

M28x1

Found on some older enlarger and repro lenses.

Enlarging

M28.5x0.6

Thread used on some Leica and Leitz enlarger lenses and accessories.

Enlarging

M28.7x0.75

Rare specialty thread found on some vintage enlarger or repro lenses.

Enlarging

M29x0.5

Filter thread on some compact cameras; also seen on microscopy accessories.

Microscopy · Filters & holders

M29.5x0.5

Filter thread found on some older compact and rangefinder cameras.
#0 shutters (Compur, Copal, Copal Press, Prontor) use this thread to mount front and rear lens cells.

Equipment and systems: Edmund Optics TECHSPEC® 0.5X, 65mm WD CompactTL™ Telecentric Lens (Stock #63-741).

Photography · Filters & holders
