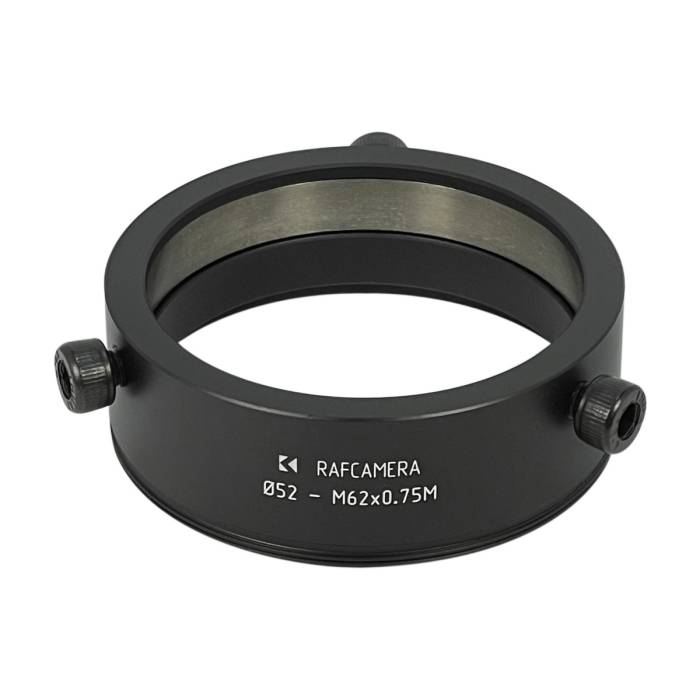

52mm clamp to M62x0.75 male thread adapter

• Front side - 52mm inner diameter
• Rear side - M62x0.75 male thread

This adapter allows using attachments with 52mm mount diameter in front of lenses with M62x0.75 filter thread.

Depth is 17mm. There is no stop ring inside to allow you as close position of the attachment to the lens as possible. Please be careful during installation to not scratch your lens front element.

Recommended installation procedure:

1. Mount the adapter into a lens filter thread until stop.
2. Insert the attachment accurately into the adapter and slide it slowly until stop.
3. Pull the attachment just a bit (1mm or so) back to provide safety space between elements.
4. Turn the attachment to achieve a squeezed image without skew.
5. Secure the attachment with three screws of the adapter.

Sample setup shows how the whole assembly may look. Two marked positions are our adapters - filter adapter (available separately if necessary) and attachment to lens adapter (clamp) that is for sale in this listing.
