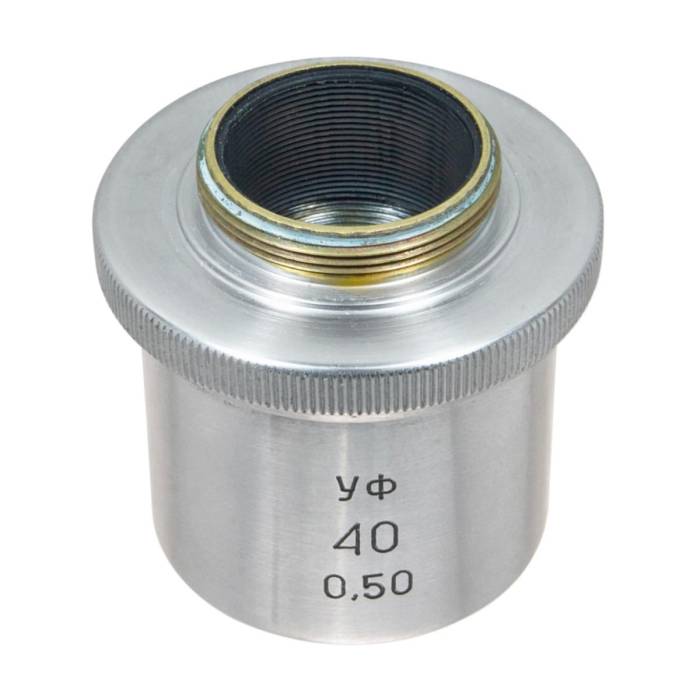

LOMO Microscope Objective - 40x0.50, Ultraviolet
$300.00
In stock
Only 2 left
SKU
808222954572
| Warehouses | Available Stock |
|---|---|
| Belarus | 2 |
LOMO Microscope Objective - 40x0.50, Ultraviolet
- Objective code: OK-40
- Mount: 0.8″-36 (RMS)
- Tube length: 160mm
- Cover glass thickness: 0.17mm
- Magnification: 40x
- Numeric aperture: 0.50
- Focal length: 4.3mm
- Immersion: Dry
- Work distance: 2.0mm
- Parfocal height: 33mm
- Image size: ?
- Correction: Achromat
- Light: Transmitted, bright field
- Spectrum range: 211-800nm (UV & visible)
- Research method: -
- Contrast method: -
Here are two links to pictures took with such UV lenses by one of our customers from Germany:
| Mount Thread | RMS (0.8"-36tpi) |
|---|---|
| Correction | Achromat |
| Immersion | Dry |
| Objective Magnification | 40x |
| Numerical Aperture | 0.50 |
| Tube Length | 160mm |
| Work Distance | 2.00mm |
| Parfocal Height | 33mm |
| Special Features | For 211-800nm wavelength range (UV & visible) |
| Purpose | For researches in transmitted light, bright field |
| Manufacturer | LOMO |
