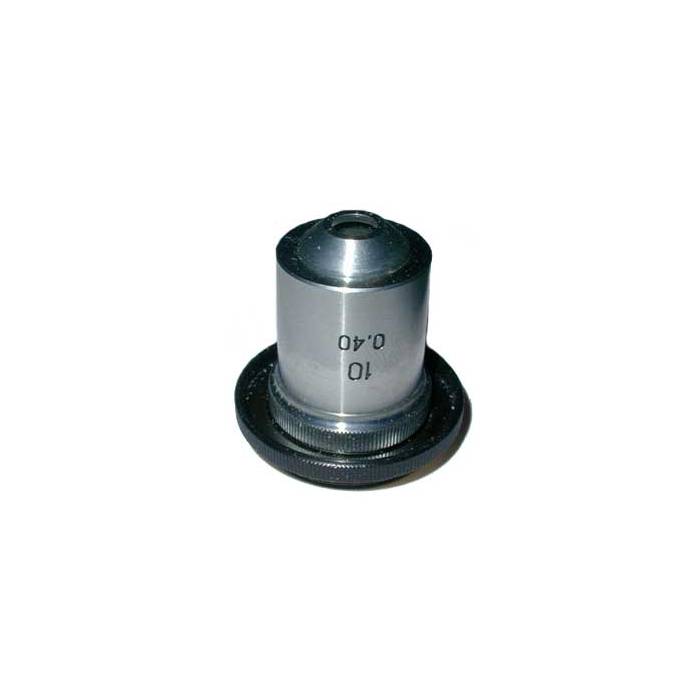

LOMO Microscope Objective - Achromat 10x0.40
$35.00
Out of stock
SKU
ACHRO10X040
Can't find such objective in the reference books. They state that such objective should be either Luminescence or Polarization one. But not marks on it. I had such Luminescence objective. So, I don't know if this is usual objective or Luminescence on...
Can't find such objective in the reference books. They state that such objective should be either Luminescence or Polarization one. But not marks on it. I had such Luminescence objective. So, I don't know if this is usual objective or Luminescence one. Info below is copied from Lumi objective datasheet.
| Objective code |
OM-33L ? |
| Mount |
0.8″-36 (RMS) |
| Tube length |
160mm |
| Cover glass thickness |
0.17mm |
| Magnification | 10х |
| Numeric aperture |
0.40 |
| Focal length |
15.98mm |
| Immersion | Dry |
| Work distance |
3.08mm |
| Parfocal height |
33mm (RMS) |
| Image size |
18mm |
| Correction |
Achromat |
| Light |
Transmitted, bright field |
| Spectrum range |
400-700nm |
| Research method |
Luminescence ? |
| Contrast method |
- |
| Other features |
- |
| Mount Thread | RMS (0.8"-36tpi) |
|---|---|
| Correction | Achromat |
| Immersion | Dry |
| Objective Magnification | 10x |
| Numerical Aperture | 0.40 |
| Manufacturer | LOMO |
