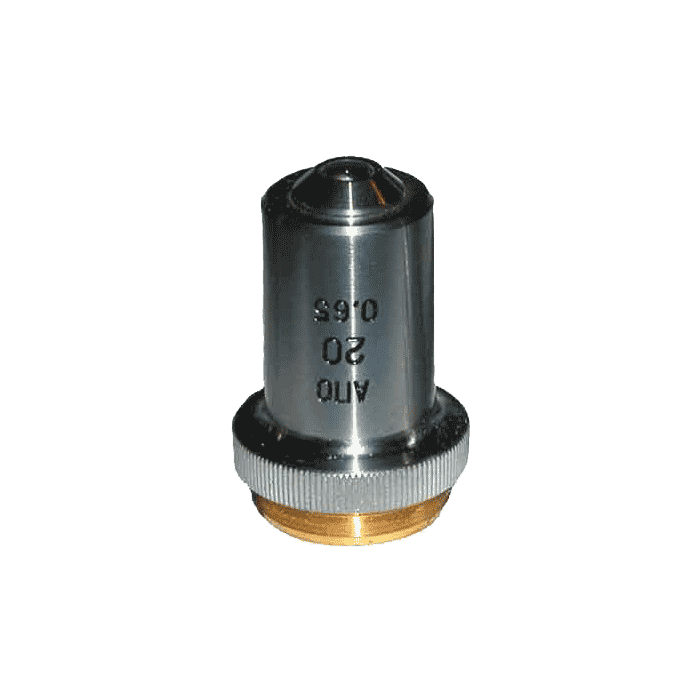

LOMO Microscope Objective - APO 20x0.65, Luminiscence
$140.00
Out of stock
SKU
APO20X065L
Objective code OM-21L Mount 0.8″-36 (RMS) Tube length 160mm Cover glass thickness 0.17mm Magnification 20х Numeric aperture 0.65 Focal length 8.43mm Immersion Dry Work distance 0.67mm ...
| Objective code |
OM-21L |
| Mount |
0.8″-36 (RMS) |
| Tube length |
160mm |
| Cover glass thickness |
0.17mm |
| Magnification | 20х |
| Numeric aperture |
0.65 |
| Focal length |
8.43mm |
| Immersion | Dry |
| Work distance |
0.67mm |
| Parfocal height |
33mm (RMS) |
| Image size |
18mm |
| Correction |
Apochromat |
| Light |
Transmitted, bright field |
| Spectrum range |
400-700nm |
| Research method |
Luminescence |
| Contrast method |
- |
| Other features |
- |
Luminiscence objectives work fine in usual light too.
| Mount Thread | RMS (0.8"-36tpi) |
|---|---|
| Correction | Apochromat |
| Immersion | Dry |
| Objective Magnification | 20x |
| Numerical Aperture | 0.65 |
| Tube Length | 160mm |
| Work Distance | 0.67mm |
| Parfocal Height | 33mm |
| Special Features | Spring loaded tip |
| Purpose | For biological researches |
| Manufacturer | LOMO |
