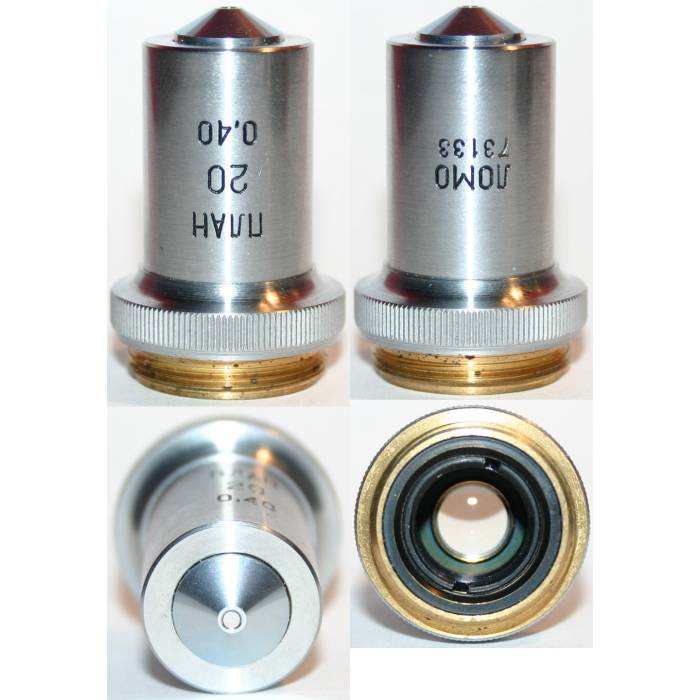

LOMO Microscope Objective - Planachromat 20x0.40
$49.00
Out of stock
SKU
PLAN20X040
Objective code OM-31 Mount 4/5″-36 (RMS) Tube length 160mm Cover glass thickness 0.17mm Magnification 20х Numeric aperture 0.40 Focal length 8.49mm Immersion Dry Work distance 0.16mm ...
| Objective code |
OM-31 |
| Mount |
4/5″-36 (RMS) |
| Tube length |
160mm |
| Cover glass thickness |
0.17mm |
| Magnification | 20х |
| Numeric aperture |
0.40 |
| Focal length |
8.49mm |
| Immersion | Dry |
| Work distance |
0.16mm |
| Parfocal height |
33mm (RMS) |
| Image size |
18mm |
| Correction |
Planachromat |
| Light |
Transmitted, bright field |
| Spectrum range |
400-700nm |
| Research method |
- |
| Contrast method |
- |
| Other features |
- |
| Mount Thread | RMS (0.8"-36tpi) |
|---|---|
| Correction | Planachromat |
| Immersion | Dry |
| Objective Magnification | 20x |
| Numerical Aperture | 0.40 |
| Tube Length | 160mm |
| Work Distance | 0.16mm |
| Parfocal Height | 33mm |
| Manufacturer | LOMO |
