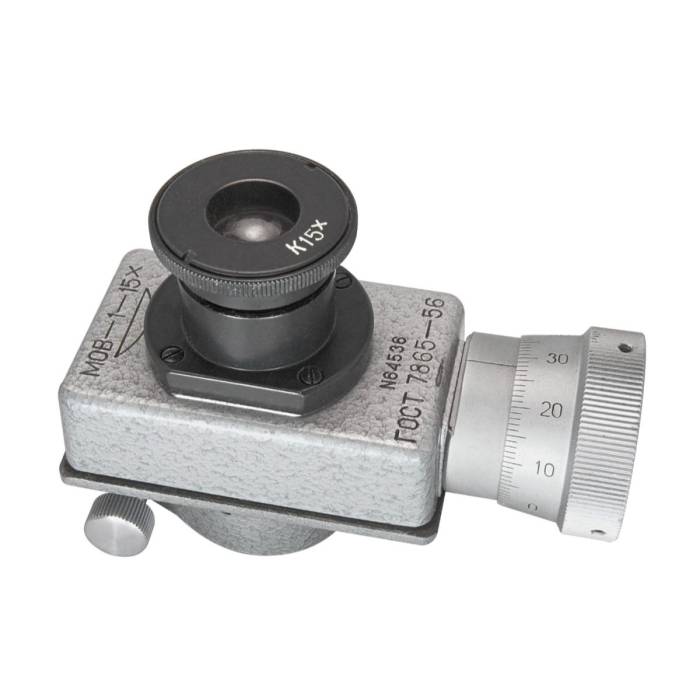

LOMO Micrometer Eyepiece - MOV-1-15x

The LOMO Micrometer Eyepiece - MOV-1-15x is purposed to measure linear size of a magnified object.

It also can be used to determine a microscope magnification if combined with an object-micrometer.

The eyepiece can be mounted on any microscope with eyepiece tube of 25mm outer diameter.

Knob scale division value is 0.01mm. Field of view has 8mm ruler and crosshair.

Features:

• Magnification: 15x
• Linear field of view: 10.5mm
• Dioptri adjustment: +/-5 dptr

Condition:

• Excellent appearance. Some dust inside. Dioptric adjustment need re-lubricationg (it is very stiff).
