LOMO Micrometer Eyepiece - MOV-1-15x, black
$49.00
Out of stock
SKU
808222707376
| Warehouses | Available Stock |
|---|---|
| Belarus | Arriving soon |

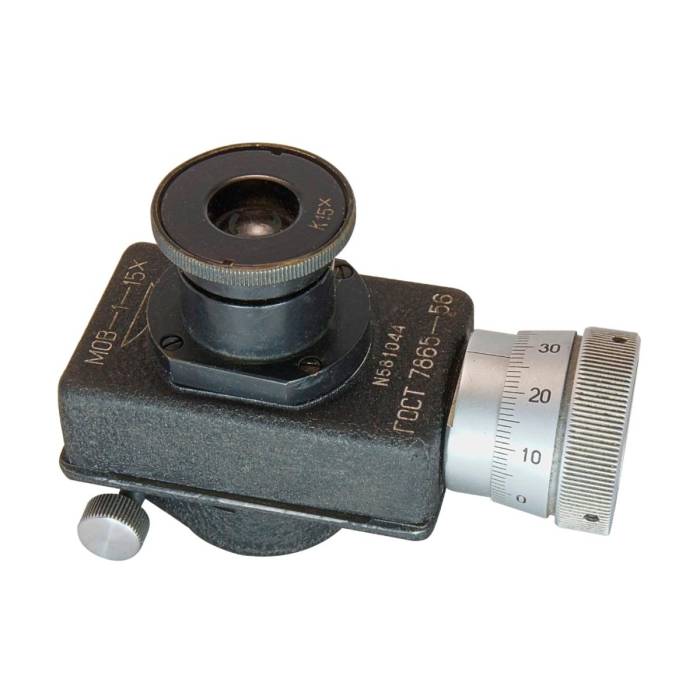

LOMO Micrometer Eyepiece - MOV-1-15x, black
The LOMO Micrometer Eyepiece - MOV-1-15x is purposed to measure linear size of a magnified object.
It also can be used to determine a microscope magnification if combined with an object-micrometer.
The eyepiece can be mounted on any microscope with eyepiece tube of 25mm outer diameter.
Knob scale division value is 0.01mm. Field of view has 8mm ruler and crosshair.
Features:
- Magnification: 15x
- Linear field of view: 10.5mm
- Dioptri adjustment: +/-5 dptr
Condition:
- Excellent appearance. Some dust inside. Dioptric adjustment need re-lubricationg (it is very stiff). Micrometric adjustment runs smoothly.
| Eyepiece Type | Measuring |
|---|---|
| Eyepeice Mount Diameter | 23.2mm |
| Eyepiece Magnification | 15x |
| Manufacturer | LOMO |
