LOMO Micrometer Eyepiece - MOV-1-16x
$49.00
Out of stock
SKU
808222299079

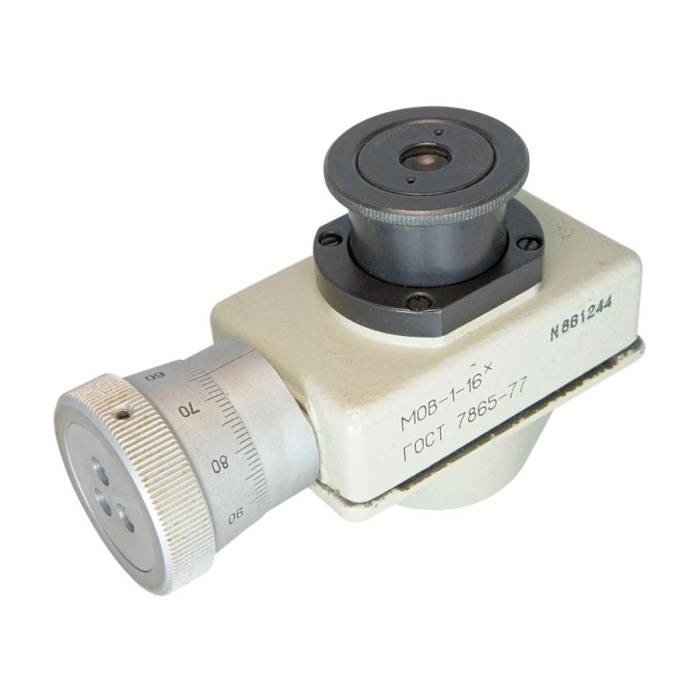

LOMO Micrometer Eyepiece - MOV-1-16x
The LOMO Micrometer Eyepiece - MOV-1-16x is purposed to measure linear size of a magnified object.
It also can be used to determine a microscope magnification if combined with an object-micrometer.
The eyepiece can be mounted on any microscope with eyepiece tube of 25mm outer diameter.
Knob scale division value is 0.01mm. Field of view has 8mm ruler and crosshair.
Generally, this seems to be just a variation of more commonly known 15x version (MOV-1-15x).
Features:
- Magnification: 16x
- Linear field of view: 11mm
- Dioptri adjustment: +/-5 dptr
Condition:
- Excellent appearance. Clean and clear. Dioptric adjustment runs smoothly.
| Eyepiece Type | Measuring |
|---|---|
| Eyepeice Mount Diameter | 23.2mm |
| Eyepiece Magnification | 16x |
| Manufacturer | LOMO |
