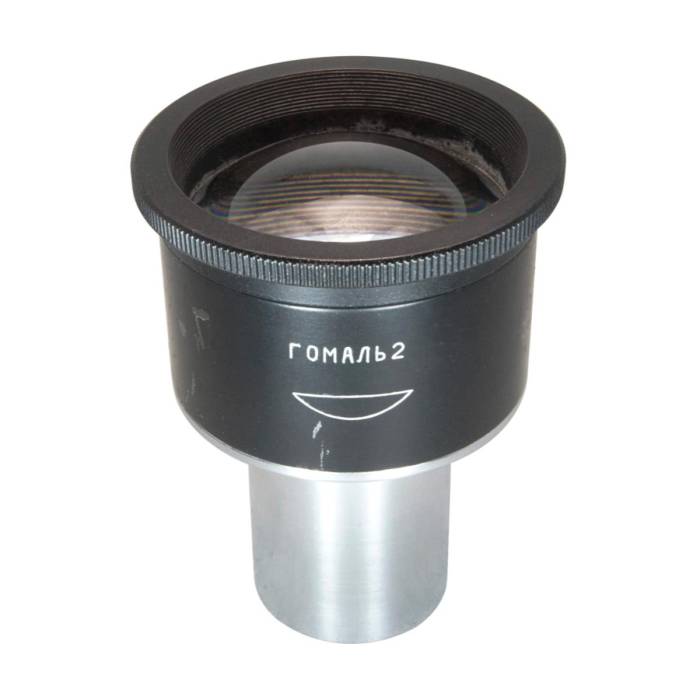

Microscope Eyepiece - LOMO Homal-2
$95.00
In stock
Only 1 left
SKU
808222550255
| Warehouses | Available Stock |
|---|---|
| Belarus | 1 |
Microscope Eyepiece - LOMO Homal-II
Homal is a special projecting system used to take pictures in the visible light. Optical system of homals partially corrects field of view curvature and magnification chromatic aberrations of achromatic and apochromatic objectives. But using homals you lose about 1/3 of the field of view.
This Homal-II should be used with objectives for 160mm and 190mm tube length if their powers is 5x to 20x, and with infinity tube objectives of 11x to 30x power (using f=250mm tube lens).
Focal length - minus 70.42mm;
Linear field of view - 15mm;
Mount diameter - 27mm;
Coated glass.
Very good used condition.
| Eyepiece Type | Homal |
|---|---|
| Eyepeice Mount Diameter | 27mm |
| Eyepiece Magnification | - |
| Eyepiece Focal Length | -70.42mm |
| Eyepiece linear FOV | 15mm |
| Eyepiece Notes | Coated optics |
| Manufacturer | LOMO |
