Front side - CS-mount female thread
Rear side - Samsung NX Mini male mount

Machined from high quality aluminium alloyWhy aluminium?.

This adapter allows using CS-mount lenses on Samsung NX Mini cameras.

Shutter fires in P, A, S, M modes. But it is recommended to work in fully manual (M) mode, since any automatic adjustments will not work anyway.

TIP: If the camera does not see a lens, please clean two contacts on the rear side of the adapter. Aluminium oxide film does not conduct electricity.

NOTE: this adapter is purposed for CS-mount lenses. They have the same thread as C-mount (1"-32tpi), but 5mm shorter flange focal distance. C-mount lenses will not focus with this adapter, although they can be installed.

More Information

More Information
Adapter Front Side	CS-mount
Adapter Rear Side	Samsung NX mini
Adapter Added Length	5.3mm
Material	Aluminium
Manufacturer	RafCamera
Advantages	Design: Many of our products were inspired by customers, and have great application value. Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable. Technology: Cutting from solid bars provides the highest possible product quality. Tolerances: A bit tight fit is better than too loose fit for imaging equipment.

Reviews

Questions

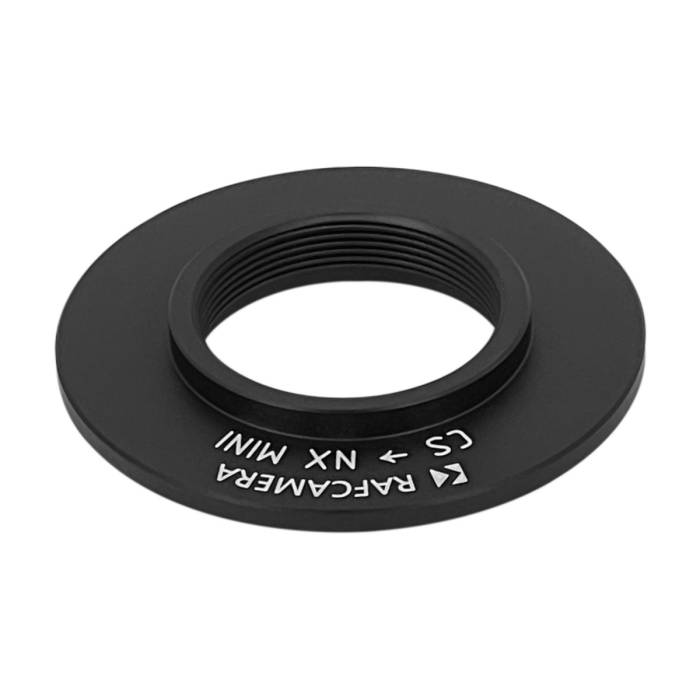

CS-mount female thread to Samsung NX Mini camera mount adapter
