Hello will this work for MIR-20M lens? Thanks.

Hi Seni! Unfortunately, MIR-20M lens will not fit. Sorry. Raf.

Hello. I measured my METEOR 17-69mm f/1.9 zoom lens (original Krasnogorvsk 16mm zoom lens) and it seems that it would fit your adapter. Can you confirm that? Thank you.

Hi Eric. Meteor will NOT fit this adapter. Aperture ring gets stuck before the adapter reach it's correct position. Sorry. Raf.

Hello! Will this adaptor work with Carl Zeiss Jena 50mm 1.8 and 35mm 2.8 Zebra series?

Hi Sebastian. Unfortunately, I can not know all existing lenses. There is a drawing with critical dimensions on the page. Please measure your lenses and check against the drawing to see if they fit or not. Thank you. Raf.

I have the following two (2) M42x1 lens for my Krasnogorsk-3 movie camera, i.e. 1. Meteor-5-1 17-69 mm f/ 1.9 zoom lens (Russian: Метеор) 2. Peleng 8mm f3.5 prime lens Will they fit this adapter?

Hi Nicholas. No, this adapter will NOT fit these lenses. Sorry. Raf.

Hello, I recently had an M42 Zeiss Jena Flektogon in my possession (that I needed to return). I measured the back at 51mm - I assume this was the correct measurement to take. Based on the above information, do you believe that this adapter would fit a Flektogon 35mm lens?

Hi Alexander. Unfortunately, I can't know how exactly you measured that lens. if you did this correctly, it will fit this adapter. Thank you. Raf.

Can this use for takumar lenses?

Hi Aquardes. Most probably, no. But I can't know every lens. You should measure your particular lenses and compare them with the adapter drawing. Thank you. Raf.

Hello there! Will this fit the Zenitar 16mm 2.8? Since the Zenitar was built for the Zenit camera, it should work? Also if it will not focus to infinity, will it focus at all? Thanks

Hi Ryan. The Zenitar 2.8/16mm lens will NOT fit, since it has too large flange diameter. You can install the adapter reversed, and the lens will fit then, but it will focus to very close distances only (a few centimeters from the lens front). Thank you. Raf.

JavaScript seems to be disabled in your browser. For the best experience on our site, be sure to turn on Javascript in your browser.

Account

Home
Adapters
M42x1
Thread Adapters
M4x

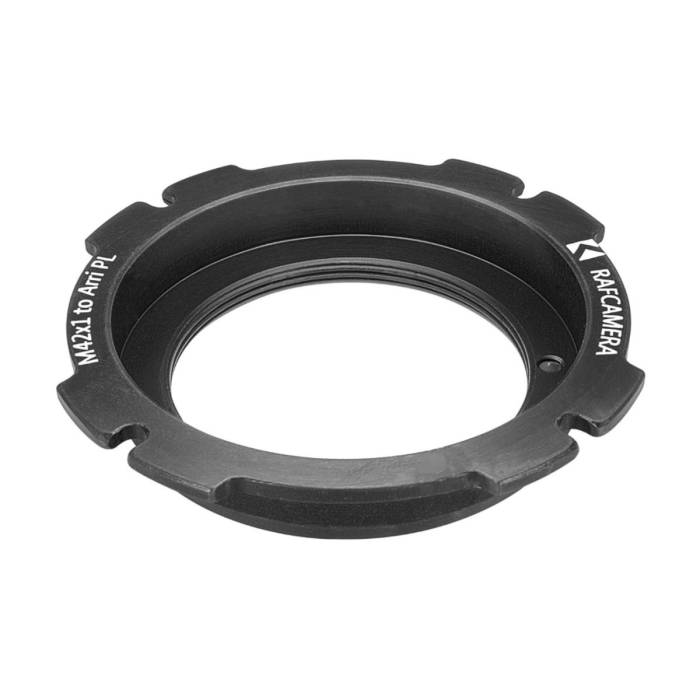

M42x1 lens to Arri PL camera mount adapter, improved

M42x1 lens to Arri PL camera mount adapter, improved

Name: M42x1 lens to Arri PL camera mount adapter, improved
Brand: RafCamera
SKU: 763461176072
Price: 69 USD
Availability: InStock
Rating: 100 (1 reviews)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Rating:

100 % of 100

1 Review Add Your Review

$69.00

In stock

SKU

763461176072

Warehouses	Available Stock
Belarus	8
Austria	4
USA	9

M42x1 lens to Arri PL camera mount adapter, improved

Details

Front side - M42x1 female thread
Rear side - Arri PL mount

The adapter allows using M42x1 lenses (for Zenit, Praktica cameras) on cameras with Arri PL mount.

Actually, not every lens will fit it since it is necessary to recess the adapter into Arri PL mount to match FFD (to allow infinity focus). So, you'll be able to install any lens that is narrow enough in the rear part - less than 53mm diameter (see the drawing with important dimensions).

This 53mm is the maximum that can be achieved for this type of adapter.

There are cut-outs on all 4 bayonet lugs to provide 4 mounting positions (you may want to position a lens' index mark to a different side for assistant job, for example).

A distinctive feature from competing offers is a set screw in the m42 flange. It allows securing a lens position so you can't unscrew the lens accidentally if the focus ring is tight. The screw comes from the rear side and doesn't damage a lens thread. The black color prevents light reflections.

The adapter is machined from high quality aluminium alloyWhy aluminium?, anodized to black color, and laser engraved.

Compatibility list (please report your lenses as well to extend this chart)

COMPATIBLE	INCOMPATIBLE
Carl Zeiss Jena 35mm F2.8 (ALU/silver version) (unconfirmed)	MIR-1 37mm (ZOMZ) (focuses to about 10m away with improved adapter, but focus ring becomes jammed in)
Helios 44-2 58mm (KMZ & Valdai)	Mayer-Optic Gorlitz 30mm (only starts to screw in)
Helios 44m-1 58mm (M39 mount)	MIR-20M 20mm (KMZ)
Industar 50-2 50mm (KMZ)	Helios 44-3 58mm (MMZ)
Meyer Görlitz Primotar 180 f3.8	Helios 44m / 44m-4 58mm (Valdai)
Pentacon 135mm f2.8 (15 blade version)	TAIR-11A 135mm (KMZ)
Pentacon 300mm f4.5	Jupiter-9 85mm
Hexatar 45mm f2.8	Jupiter 11A 135mm (KOMZ)
Steinheil Munchen Casseron 40mm f3.5	Tair-3A 300mm (ZOMZ)
	E.Ludwig Meritar 50mm F2.9
	Carl Zeiss Jena (MC) 20mm, 29mm, 35mm, 50mm (F2.8), 50mm (1.8), 135mm
	Super Takumar lenses (there are rumors that Super Takumar 1:3.5 35mm works if you remove the aperture ring)

More Information

More Information
Adapter Front Side	M42x1
Adapter Rear Side	Arri PL mount
Adapter Added Length	-6.54mm
Material	Aluminium
Manufacturer	RafCamera
Advantages	Design: Many of our products were inspired by customers, and have great application value. Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable. Technology: Cutting from solid bars provides the highest possible product quality. Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
